| Katsura Opto Systems Co., Ltd. | ||
|
LASER EXPO No. A-43 |
||
| 1-7-11 Kamiasao, Asao-ku, Kawasaki-shi, Kanagawa 215-0021 Japan | |||||||||||||||||
| URL：http://www.katsura-opto.com/ | |||||||||||||||||
| ● Contact | |||||||||||||||||
| 営業部 | |||||||||||||||||
| PHONE：044-969-5231 FAX：044-969-5230 | |||||||||||||||||
| ● Highlights | |||||||||||||||||
| Founded 30 years ago, our company specializes in optical measurement sensors and has continued to provide innovative optical measurement sensors for markets ranging from CD and DVD to digital cameras and smartphones. This time, we will be showing you our state-of-the-art laser autocollimator (tilt sensor). |
|||||||||||||||||
| ● Products | |||||||||||||||||
|

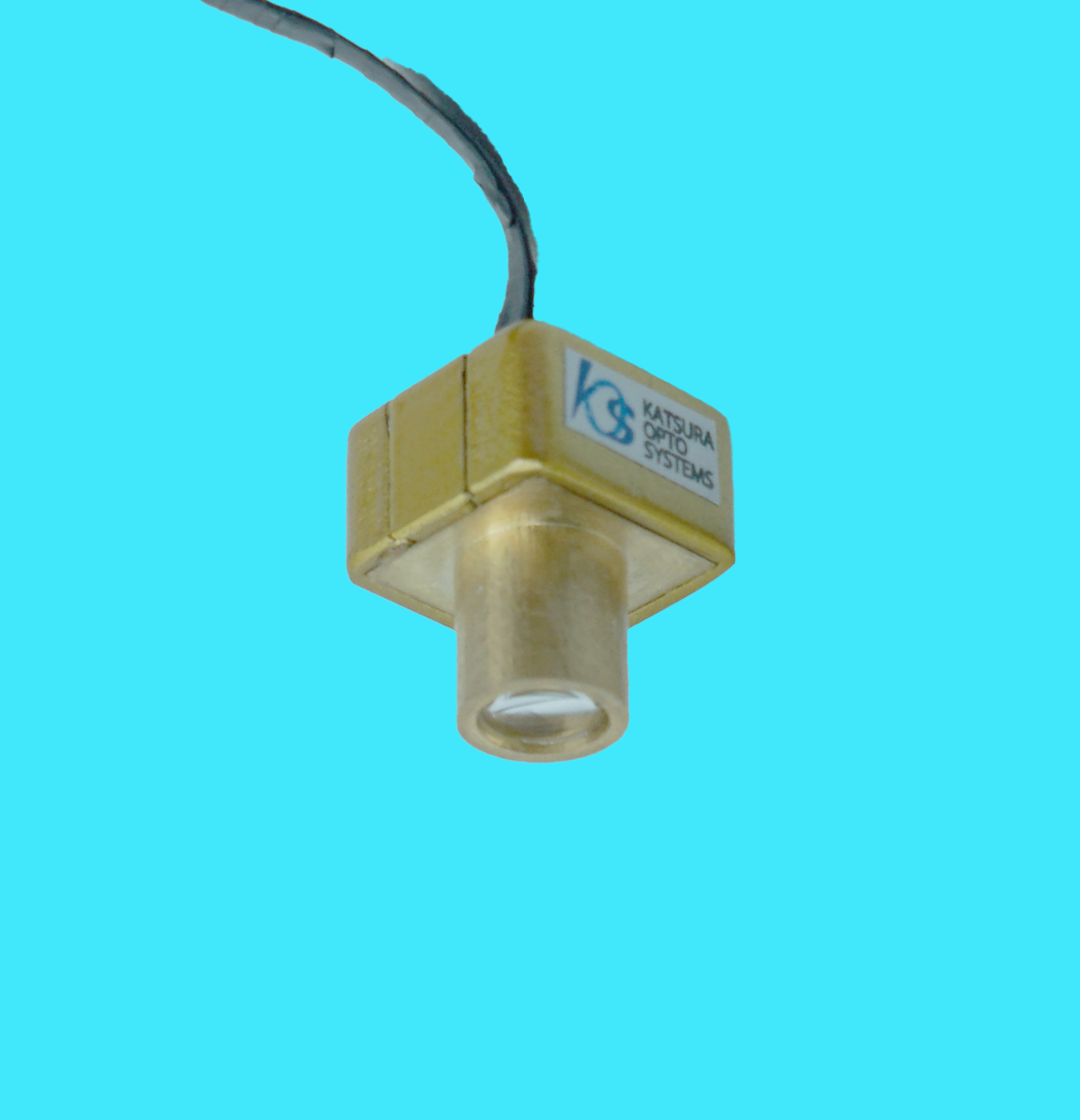

New Product Micro Tilt Sensor The ultra-compact tilt sensor is an amazingly lightweight and compact product, and is used by many customers. However, in some cases, measurements can be made unless the size is made even smaller. We will be exhibiting a prototype tilt sensor the size of a one yen coin. Features 1. Tiny size in another dimension 2. Light weight 3. Multiple connections available |
 |
||||||||||||||||
|

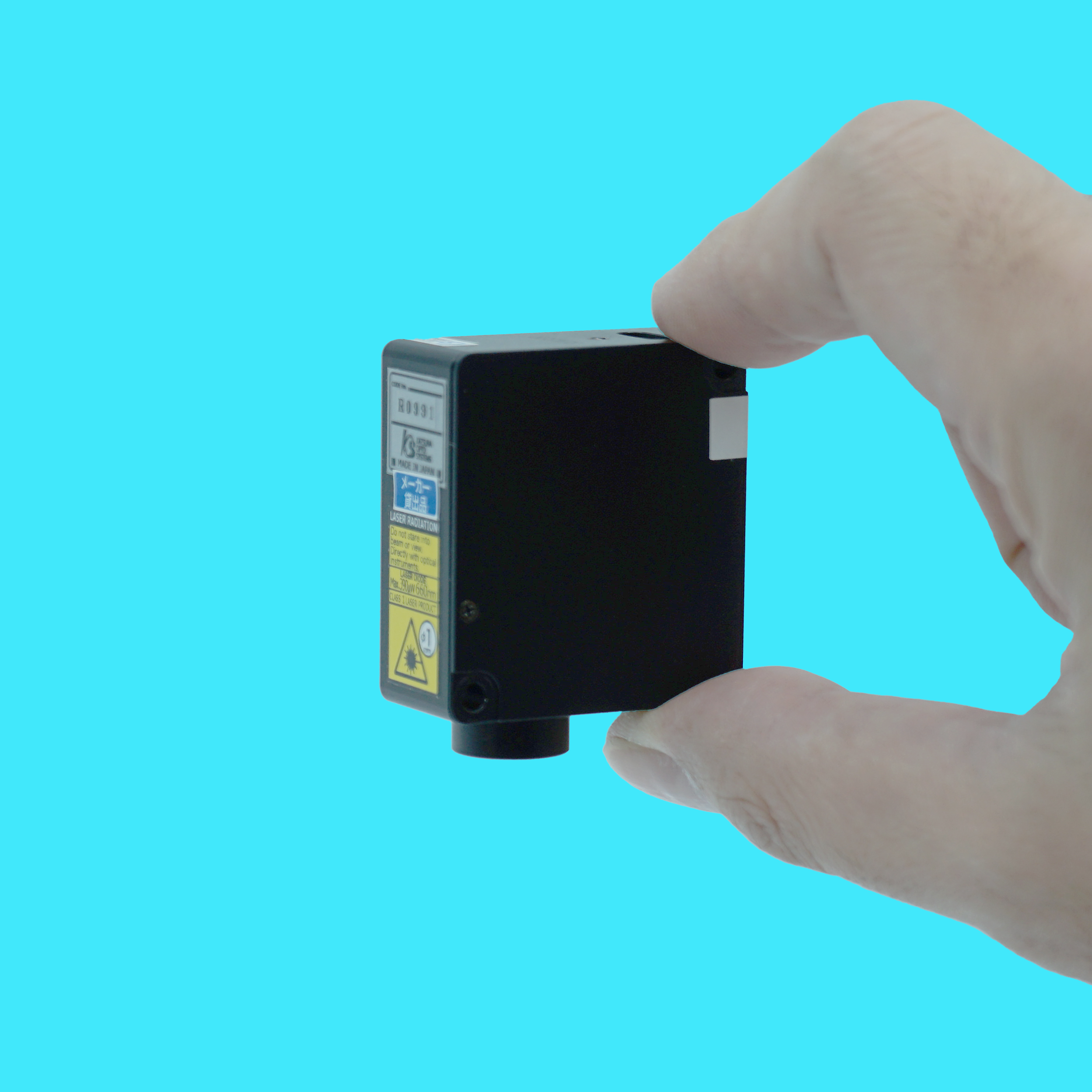

Ultra-compact Tilt Sensor A compact autocollimator that can be easily integrated into equipment. The sensor head is designed to be extremely small based on the specifications of measuring range and working distance, which are frequently requested. We have developed an unprecedented lightweight and compact product that enables control of sensors via serial communication. Features 1. World’s smallest class, lightweight and compact 2. Embeddable in Manufacturing equipment and Measurement JIG 3. High sensitivity (reflectance 0.5% or more measurement possible) 4. Easy measurement with included software (for Windows) |
 |
||||||||||||||||
|

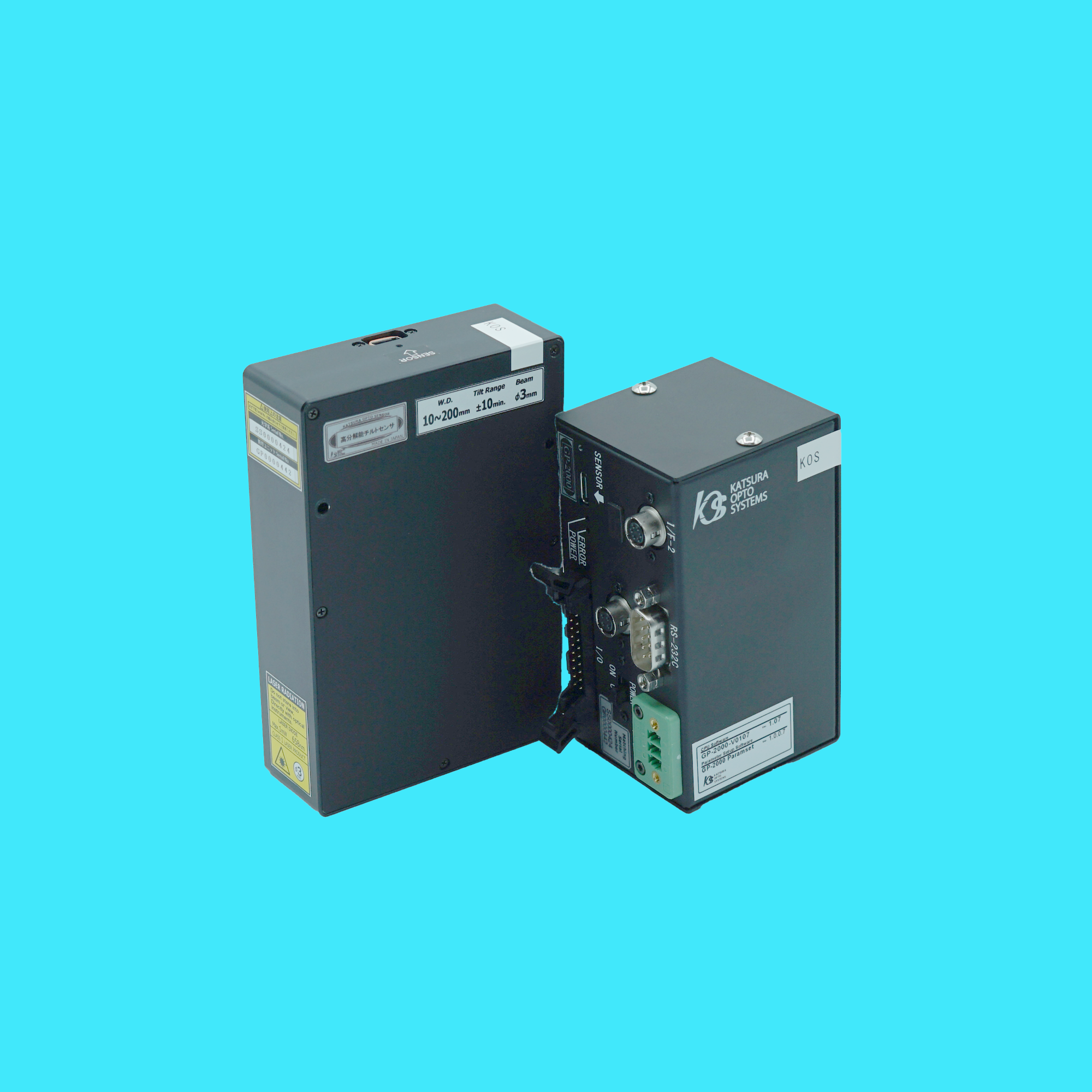

New Product High Resolution Tilt Sensor Is there any measuring instrument with higher resolution than the ultra-compact tilt sensor? We developed this sensor in response to such customer requests. A new world of measurement begins with the birth of the high resolution tilt sensor that surpasses the 1-second resolution barrier, the highest in our company’s history. Features 1. World’s highest class high resolution (0.1 sec/0.5 μrad) 2. Separate processor and sensor for various applications 3. Easy measurement with included software (for Windows) |
 |
||||||||||||||||
|

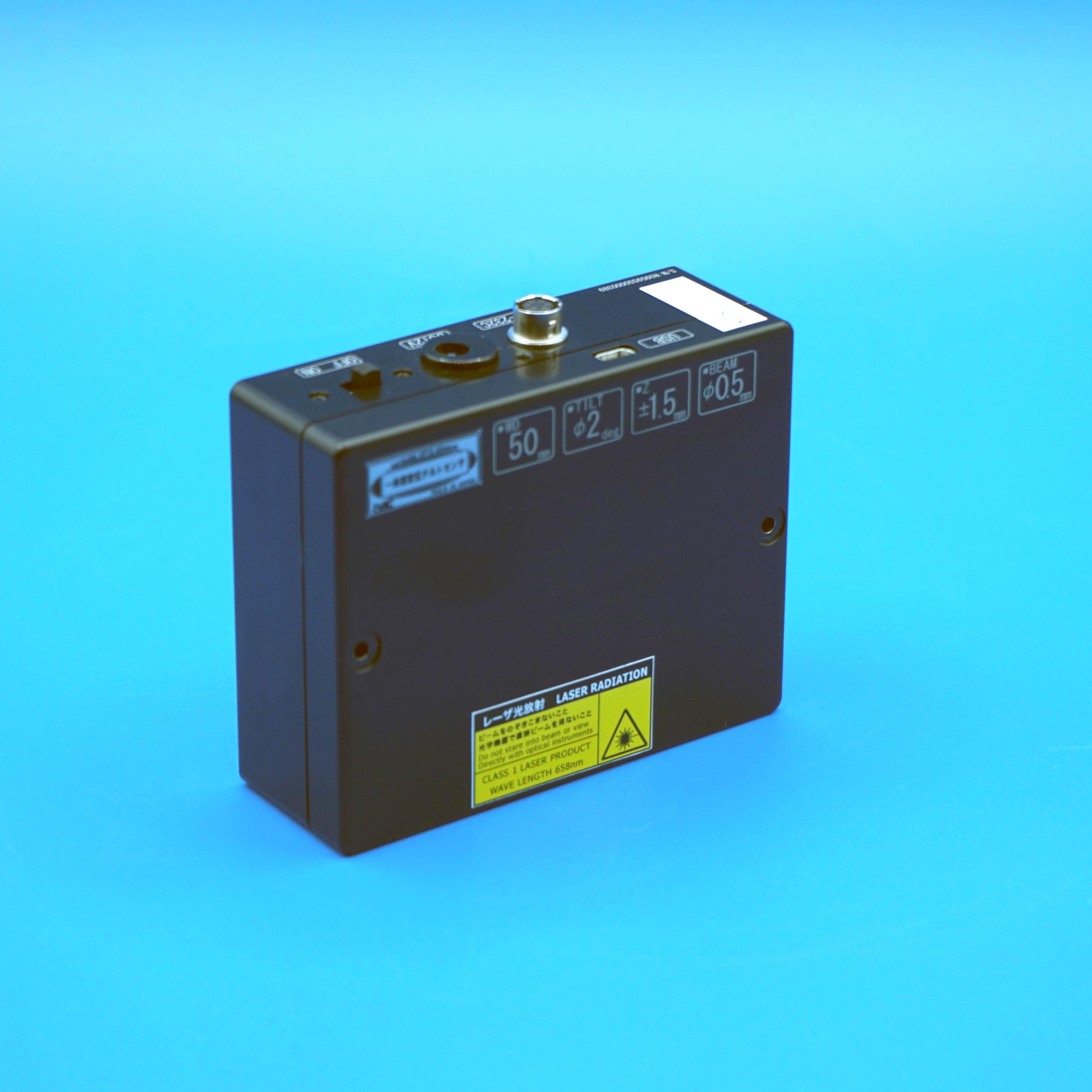

New Product Integrated Displacement Tilt Sensor An integrated displacement tilt sensor that can measure tilt and displacement simultaneously. We have developed an easy-to-use product by integrating the sensor head and processor unit into a single unit, making it lighter and smaller, and simplifying its integration into equipment. Features 1. Triangulation and autocollimator measurement methods in one 2. Integrated sensor and processor for even faster measurements (1K data/s) 3. Simultaneous measurement of displacement and inclination [Patent No. 5330114]. |
 |
||||||||||||||||
|

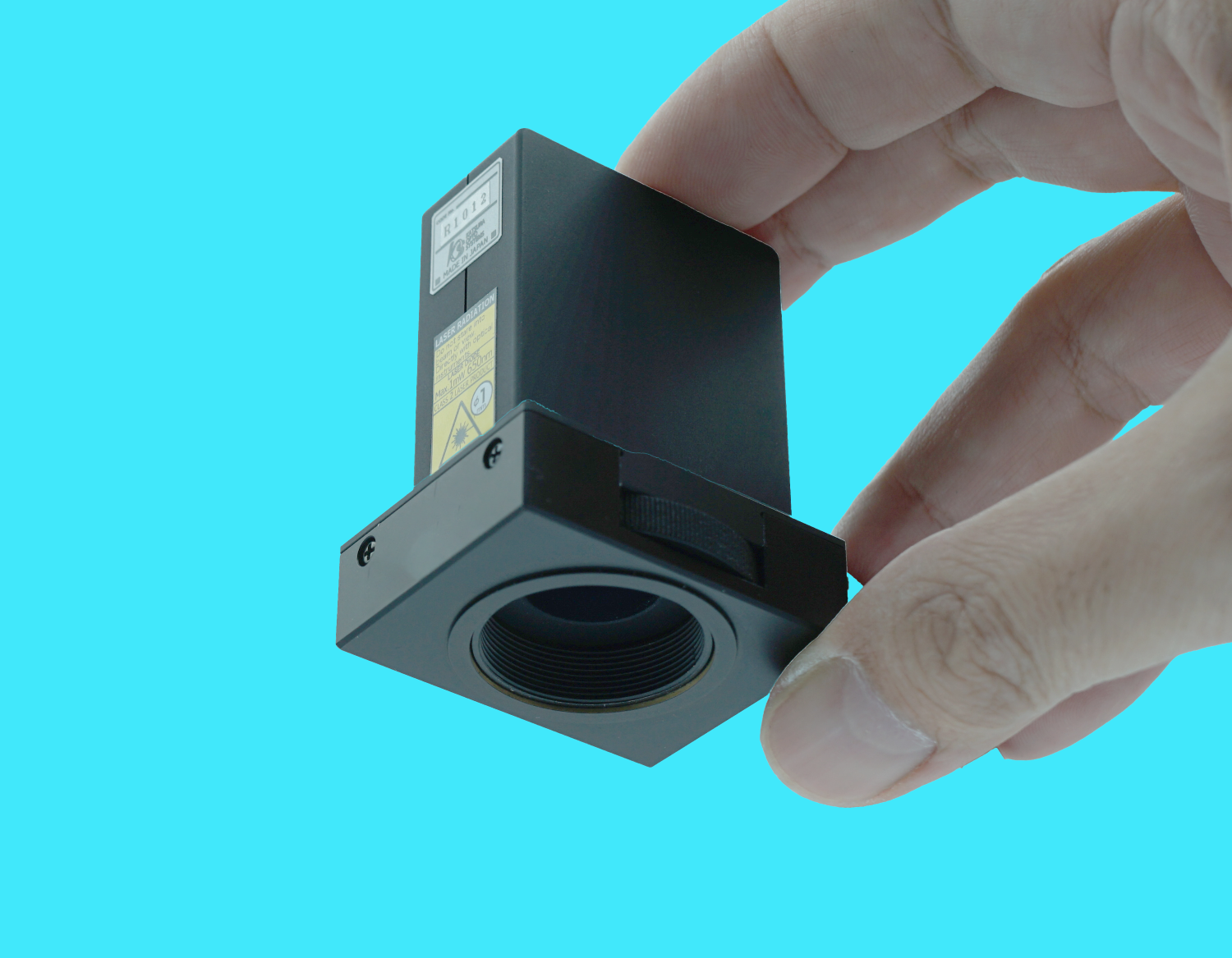

New Product C-mount Tilt Sensor Tilt sensor that can adjust and inspect the optical axis of lens barrels and C-mount mounted products used in machine vision cameras, etc. We have developed a product with an integrated C-mount surface. By mounting a reference plane, stable measurement results can be obtained, reliability is increased, and can speed up your work. Features 1. Industry’s first C-mount integrated tilt sensor 2. Measurement laser emits perpendicularly from the center position to the flange surface of the C-mount 3. Compact, high-precision measurement |
 |
||||||||||||||||
| ● Contact Us | |||||||||||||||||
Thank you. I accept inquiries.
| |||||||||||||||||
